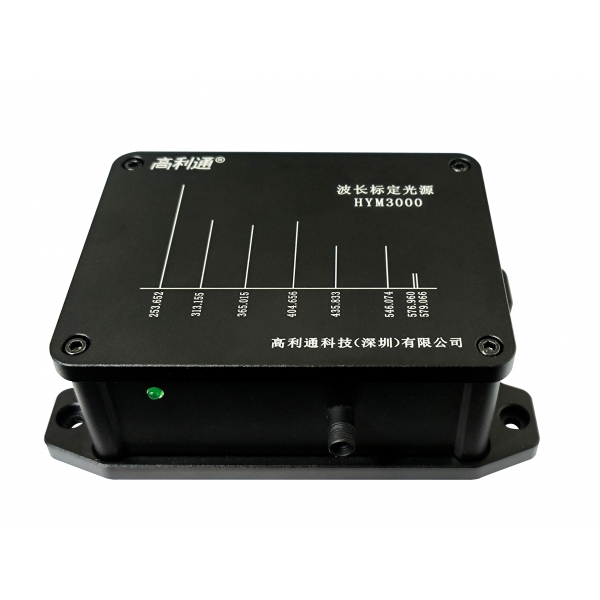

Wavelength calibration light source
-
●Produce a specific wavelength that can be used for the calibration of various spectrometers or monochromators
●Excellent wavelength stability ensure the reliability of the calibration
●High light intensity and brightness to be easily detected by the detector ensures effective calibration in different environments
●Stray light or noise is very small, which can effectively avoid interference caused by wavelength calibration
-
●Precise wavelength: Capable of generating specific wavelengths, suitable for wavelength calibration of spectrometers and monochromators. With minimal wavelength fluctuation, it ensures reliable calibration
●Easy detection: Sufficient light intensity and brightness facilitate detection by detectors, enabling effective calibration in various environments
●Little interference: Except for the main calibration wavelength, stray light and stray waves are extremely minimal, avoiding interference with wavelength calibration
-
Items
Specifications
Remark
Wavelength Range
190-925nm
Calibrated wavelength
253.652, 313.155, 365.015, 404.656, 435.833, 546.074, 576.960, 579.066, 696.543, 706.722, 714.704, 727.294,
738.393, 750.387, 763.511, 772.367,
794.818, 800.616, 811.531, 823.452,
842.465, 852.144, 866.794, 912.297 and
922.450
nm
Output Connector
SMA905
Total Power of Light Source
3W
Power Supply
220V
Weight
825g
-
●Spectrometer wavelength calibration
