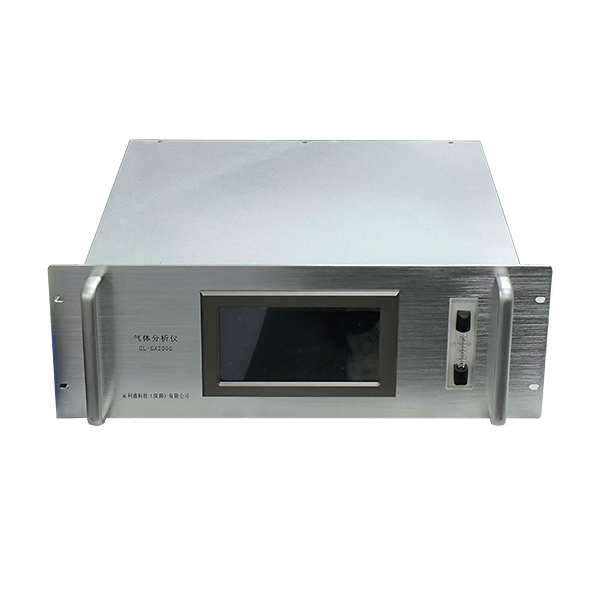

Spectroscopic Gas Measurement Applications
-
● Consists of a ultraviolet spectrometer, an optical gas measuring cell, a ultraviolet light source and an algorithm, which have been independently designed and produced by Glit
● High resolution
● Excellent thermal and vibrating stability
● Optional spectral range
● Optional absorption length
● Easy to upgrade through modular design
● Easy to do assembly due to compact
-
- The spectral detection range can be configured on demand.
- The optical path length for gas absorption is selectable.
- Modular structure facilitates secondary integration into online monitoring equipment.
- Modular hardware and software allow easy post-upgrade and troubleshooting & maintenance.
-
Items
Specifications
Remarks
Measurement Gas
SO2 and NO
Measurement Principle
DOAS: SO2, NO
Measurement Range
0～200ppm(SO2,NO)
Density Resolution
SO2/NO:0.01ppm
Linearity Error
≤±1.5%F.S.
Repeatability
≤±0.5%F.S.
Zero Drift
≤±1.5%F.S./7d
Measurement Range Drift
≤±1.5%F.S./7d
Response Time
＜30s(T90)
Optimum Flow
1.0L/min
Digital Output
2 source contacts and 3 dry contacts
Digital Output Type
Maximum/minimum, programmable
Modbus Digital Output
Modbus
Modbus Digital Output Type
RS48（Default)/RS232（Optional）
Software Upgrade
Using USB
Display
7-inch capacitive touch screen
LCD Type
RGB colour
Operation System
Linux
Power Supplier
220VAC，50Hz
Peak Current
<2A@220V
Average Power Consumption
<60W
Atmospheric Pressure
(86~108)kPa
Power Consumption
200mA/12V
Operation Temperature
0℃～+40℃
Operation Humidity
0～95%RH
-
●Analyzing the gas absorbed using ultraviolet spectrum (such as SO2, NO and NO2 etc.), which is used for monitoring flue gas, automobile exhaust, ship exhaust and odour gas etc.
