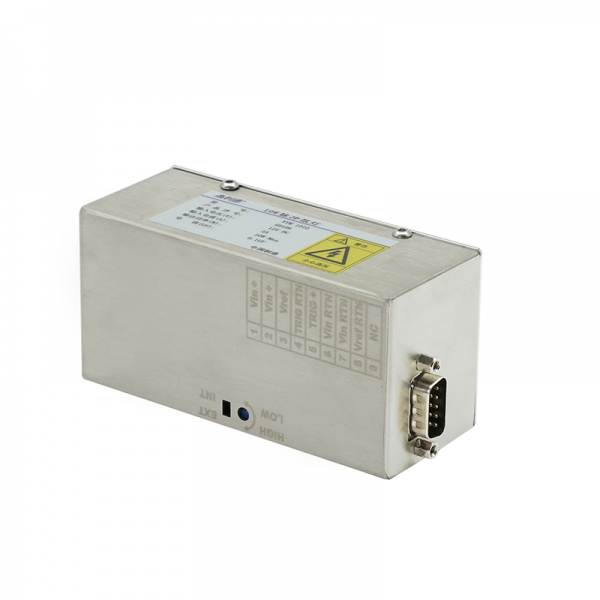

●Xenon light source with fiber coupling output.
●Work in pulse mode with adjustable repetition.
●Easily integrated with spectrometers and other devices.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Compact and cost effective.
●Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.
-
●Xenon light source with fiber coupling output.
●Work in pulse mode with adjustable repetition.
●Easily integrated with spectrometers and other devices.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Compact and cost effective.
●Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.
-
Items |
Specifications |
Units |
Wavelength Range |
185-2500 |
nm |
Fiber Connector |
SMA 905 |
|
Power Supply |
DC12/2 |
V/A |
Lamp Power |
10 |
W |
Pulse Repetition |
Max 100 |
Hz |
Trigger Input Resistance |
330 |
Ω |
Stability |
2.50% |
|
Life Time |
10^9 |
times |
Dimensions |
110x71x43 |
mm |
Operating Temperature |
0-45 |
°C |
-
●Environmental inspection: inspection of water quality and air pollution
●Spectral analysis
●Instrument lighting
●Online inspections
●R & D in science and technology
●Customization
-
