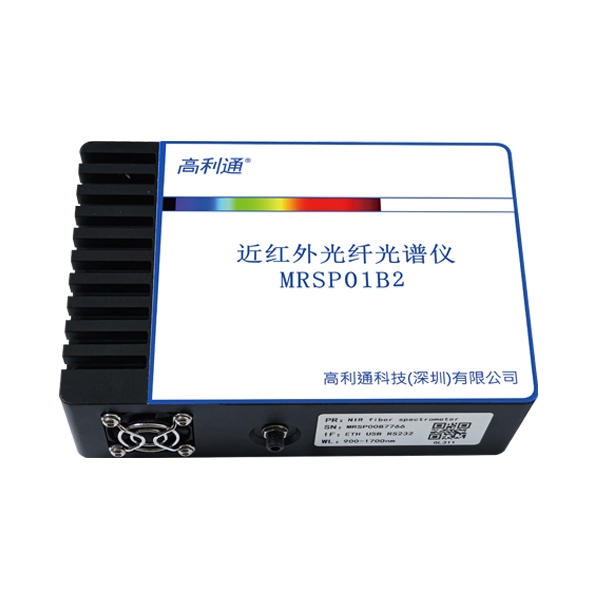

NIR fiber spectrometer MRSP01B2(900-1700nm)
-
l Unique M-optical structure with a grating, a cooled high end light detector and a SMA905 fiber connector
l Controlled by the computer through USB Type-B or RS232 connector for industrial control
l Unique software features, including automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement
l Spectral measurements, including radiation, transmittance, absorbance and reflectivity
l Software interface suitable for industrial control
l Compact size and pleasant appearance
l Characteristics of mass-produced industrial-grade optical fiber spectrometers: excellent consistency, stability, and reliability
-
● Superior temperature and vibration stability compared to international manufacturers.
● Stable mass production.
● Professional customisation services for customers.
-
Items
Specifications
Remarks
Fiber Connector
SMA905
Slit
25µm
Wavelength Range
900-1700nm
Depending on the grating used
Spectral Resolution
FWHM 5.5nm@Hg 1014nm@25μm slit
Depending on wavelengths and the slits used
Light Detector
Cooled high end detector
Detector Cooling
15℃
Cooling Power Supply
DC5V/3A
Pixel Number
512
Pixel Size
25μmx25μm
Detector Collecting Lens
Yes
SNR
200:1
Room temperature
ADC Resolution
16 bits
Integration Time
0.5ms-10S
Depending on the detector used
Data Output
Count vs. wavelength or pixel
Power Supply
DC5V/3A
Communication
RS232 and USB type-B
Data Average
1-100 times
The average can be fulfilled by using an embedded chip in the spectrometer
Dimensions
160mmx115mmx42mm
Weight
~1Kg
Mounting
4xM4 screw holes on the bottom
Operating Temperature
-10-40℃
Pay attention to the heat dissipation
Storage Temperature
-20-70℃
-
l Spectrum analysis and measurement
l Industrial process control
l Agricultural and food testing
l Petroleum and chemical industry
l R&D in science and technology
