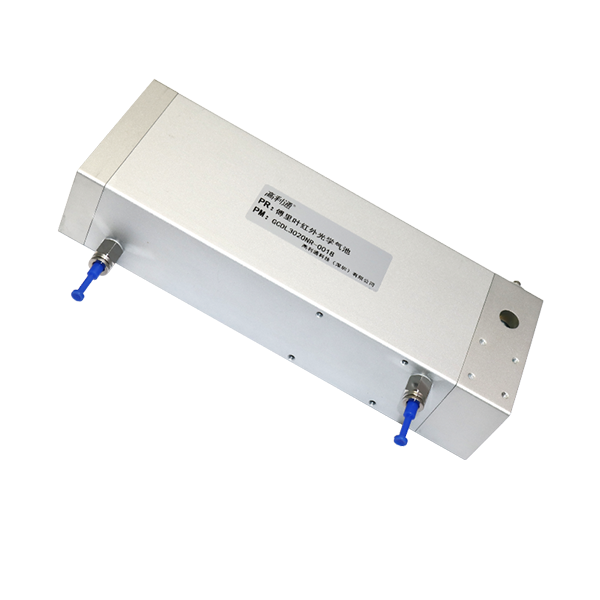

Optical Gas Cells
-
●The optical gas cells produced by Glit has two types: single reflection and multiple reflection, featuring stable optics, good anti-contamination, long lifetime and cost effective etc.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
-
●The optical gas cells produced by Glit has two types: single reflection and multiple reflection, featuring stable optics, good anti-contamination, long lifetime and cost effective etc.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
-
Items
Specifications
Wavelength Range
0.8-14μm (Gold-plated and protective film)
Optical Path Length
2.8m, 3.6m, 4.4m, 5.2m and 6.0m
Optical Coupling
Space light
External Dimensions
252.5mmx88mmx52mm
Pressurization
<0.2Mpa
Warming-up time
30min（Related to the working ambient temperature）
Constant temperature
40℃
Volume
430ml
Air Inlet and Outlet
Ø6mm
Cavity Material
Aluminium alloy with anti-corrosion treatment
-
●The products are mainly applied in air pollution research, environmental gas monitoring, industrial production process monitoring and CEMS etc.
